The typical approach when performing ship checks is to bring designers and/or engineers on board where, using tape measures, they record measurements of the existing systems and spaces. These measurements are then used in developing scope and construction documents. However, the uncertainty of the measurements requires allowances be included to account for discrepancies between the measurements and reality. These allowances can be expensive and/or prevent the installation of new equipment in a certain location because the space was considered too small, when in fact there was adequate clearance. Or, conversely, maybe not enough at the time of installation.
Vessel Type - Detailed: LNG Tanker
Gross Tonnage: 896508
DWT Summer: 77803 t
Length Overall x Breadth Extreme: 283 x 43 m

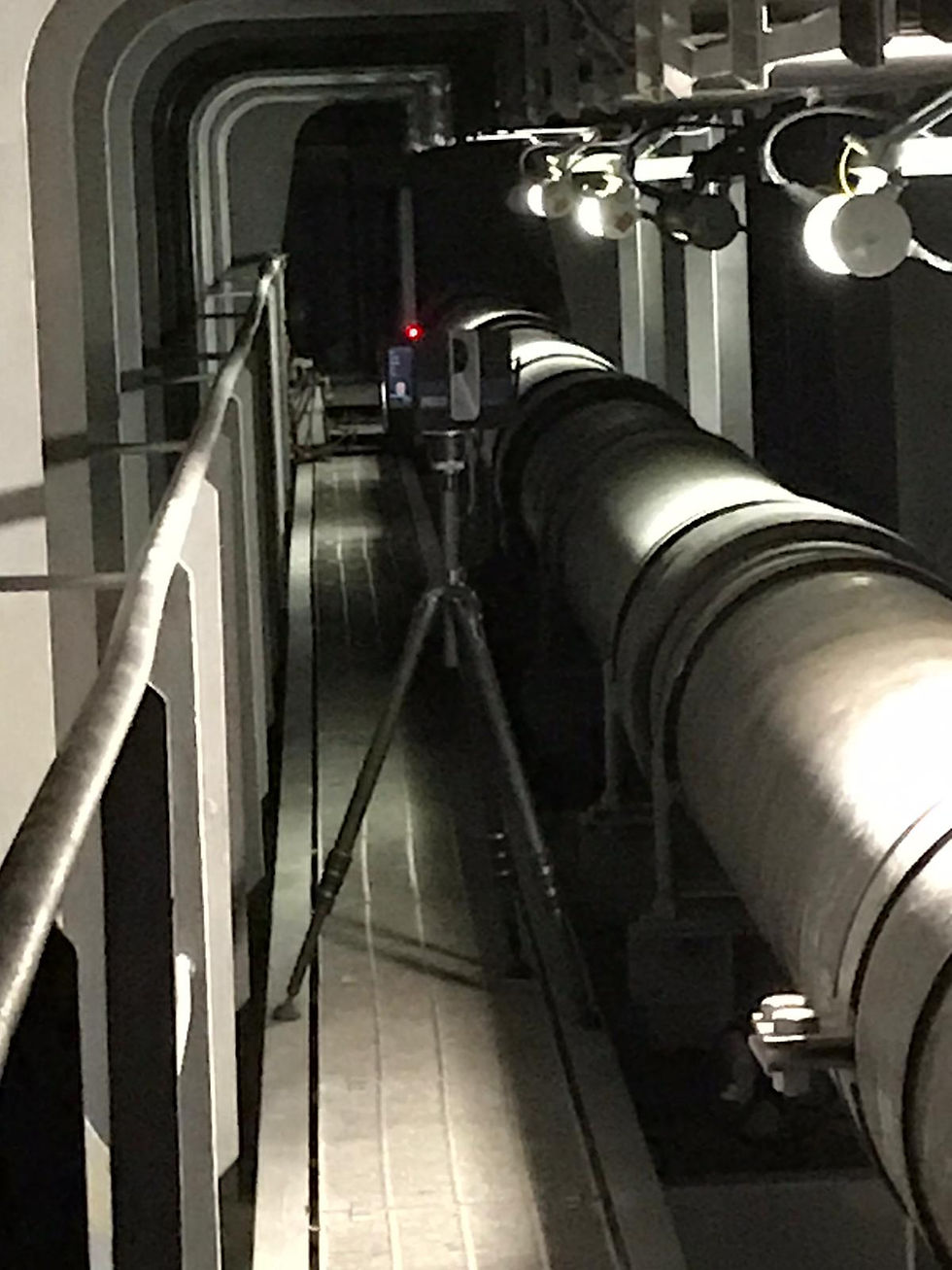

A better approach involves scanning ship spaces with a 3D laser scanner to create a very detailed and accurate 3D point cloud model. Today’s high speed laser scanners are quite suitable for this purpose as they can take tens of millions of measurements in just a few minutes. Scans are taken from various positions in order to provide sufficient coverage around equipment. The scans are then registered together to bring them all into the same coordinate system. Scans of the ships hull and keel can also be taken, in which hull curves and surface models can be created for fuel or stability analysis if needed. We also provide laser scanning services for ballast water treatment systems (BWTS).
We collaborate with naval companies and field specialists and offer high quality services for shipping companies in all ports of Spain (Barcelona, Algeciras, Valencia, Cartagena, Vigo, Bilbao, Santander, Las Palmas, Alicante, Castellón, Malaga, Seville, Tarragona , Santa Cruz de Tenerife ...), Europe, America and Africa.
